Quick answer: To use a clamp meter, turn the dial to the correct function (AC current, DC current or voltage), open the jaws, and clamp them around a single conductor — never the whole cable. The meter measures the magnetic field around that wire and shows the current on the display. For voltage and resistance, use the probes like a normal multimeter. Always set the right range and keep your fingers behind the tactile guard.
A clamp meter is one of the safest and fastest ways to measure electrical current, because it reads the current without breaking the circuit. This guide walks you through exactly how to use one — whether you are an apprentice electrician, a maintenance technician, or a homeowner checking why a circuit keeps tripping.
Key takeaways
- Clamp meters measure current by sensing the magnetic field around one conductor.
- Always select the function and range before clamping.
- Use the probes (not the jaws) for voltage, resistance and continuity.
- A clamp meter is faster and safer than a multimeter for measuring high current.
- Wear insulated gloves and never exceed the meter's rated voltage.
What is a clamp meter?
A clamp meter (also called a tong tester) is a handheld electrical testing tool with two hinged "jaws" that open and close around a wire. The jaws contain a current transformer (for AC) or a Hall-effect sensor (for AC and DC) that detects the magnetic field produced by current flowing through the conductor. Most modern units, like the VoltGuard Pro digital clamp meter, also include probes so they double as a multimeter for voltage, resistance and continuity.
How does a clamp meter work?
When current flows through a wire, it creates a magnetic field around it. The clamp's jaws encircle that field and convert it into a current reading on the screen. Because nothing has to be disconnected, you can take a measurement on a live circuit in seconds — which is why clamp meters are the go-to tool for checking motor loads, appliance draw and tripping breakers.
One important rule: the jaws must surround a single conductor. If you clamp around a two-wire cable (live and neutral together), their magnetic fields cancel out and the meter reads close to zero.
How to use a clamp meter step by step
- Inspect the meter. Check the leads, jaws and battery. Make sure the device is rated for the voltage you are testing.
- Select the function. Turn the dial to A~ (AC current), A⎓ (DC current), V (voltage) or Ω (resistance/continuity).
- Set the range. If your meter is not auto-ranging, choose a range higher than the value you expect, then step down for precision.
- Open the jaws. Press the trigger to open the clamp.

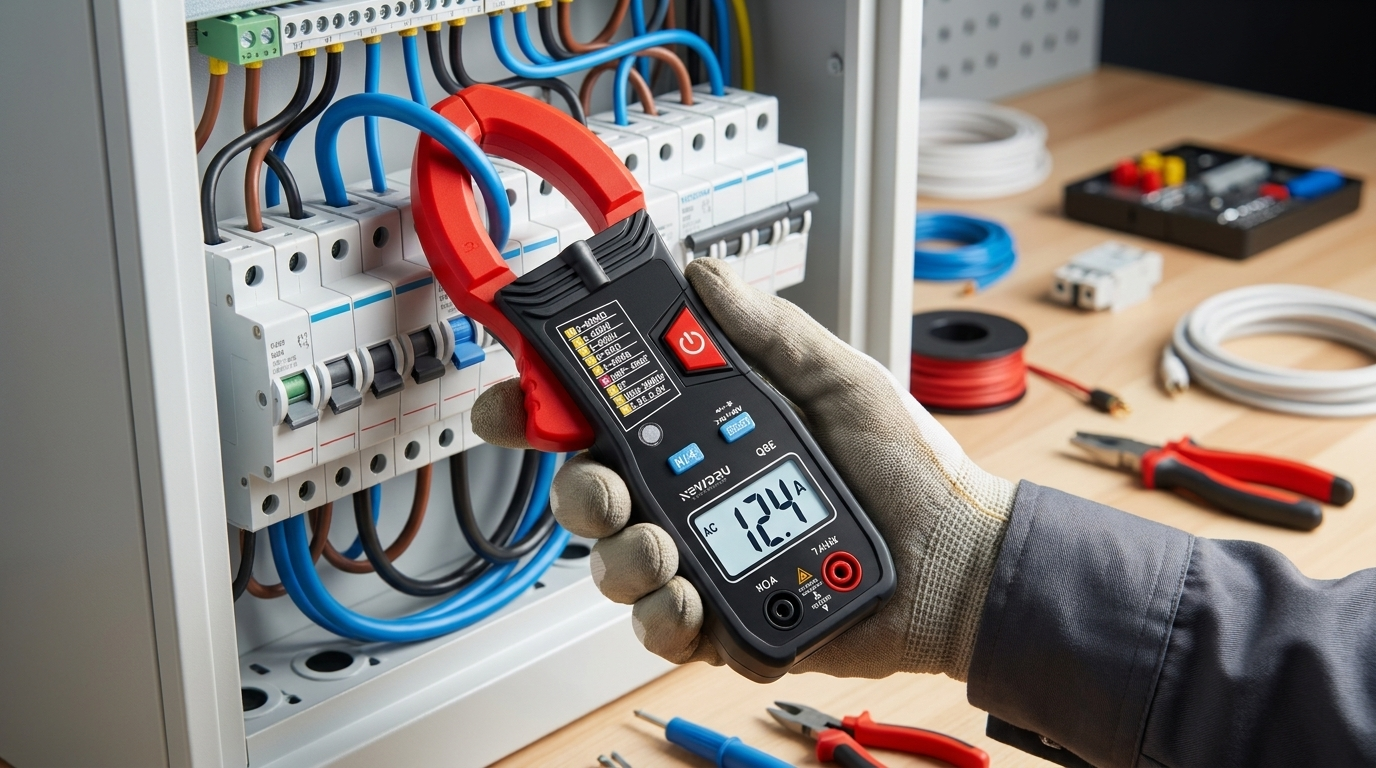

- Clamp one conductor. Place the jaws around a single wire and let them close fully. Centre the wire for the most accurate reading.
- Read the display. Wait for the value to settle. Use the HOLD button to freeze the reading in awkward spots.
- Measure voltage with the probes. For voltage or continuity, insert the test leads and touch the probes to the terminals — exactly like a multimeter.
- Remove safely. Open the jaws, withdraw the meter, and switch it off to save battery.
Clamp meter vs multimeter: which should you use?
Both tools overlap, but they shine in different situations. A clamp meter wins whenever you need to measure current — especially high current — without interrupting the circuit.
| Feature | Clamp meter | Multimeter |
|---|---|---|
| Measuring current | Clamp around wire, no contact | Must break circuit and connect in series |
| High current (10A+) | Ideal and safe | Risky; limited by fuse rating |
| Voltage & resistance | Yes (with probes) | Yes |
| Small/precise readings | Good | Best |
| Best for | Load checks, motors, breakers | Bench work, electronics |
Many pros carry both. If you only buy one general-purpose tool, a clamp meter with built-in probes covers the widest range of everyday jobs. Browse more industrial tools and machines to round out your kit.
Clamp meter safety tips and common mistakes
- Clamping the whole cable. The most common beginner error — always isolate one conductor.
- Wrong function selected. Measuring AC on the DC setting (or vice-versa) gives false readings.
- Exceeding the rating. Check the CAT rating and maximum voltage before testing.
- Skipping PPE. Insulated gloves and eye protection matter on live circuits.
- Loose jaws. Dirt or a partly open clamp lowers accuracy — keep the jaws clean and fully closed.
Pair your meter with a good electric screwdriver kit so you can open enclosures and access terminals quickly and safely.
Get the VoltGuard Pro Digital Clamp Meter
Accurate AC/DC current, voltage, resistance and continuity in one rugged, pocket-friendly tool — buy it outright, or rent it for a one-off job.
| Buy on newdru.com | Rent from Rs130/day |
Rentals: 2-day minimum, refundable deposit, free delivery on orders over Rs2000. Available at rental.newdru.com.
Frequently asked questions
Can a clamp meter measure DC current?
Only clamp meters with a Hall-effect sensor can measure DC current. Basic AC-only models use a current transformer and will not read DC. The VoltGuard Pro supports both AC and DC.
Why does my clamp meter read zero?
Almost always because the jaws are around an entire cable rather than a single conductor. The live and neutral currents cancel out. Isolate one wire and try again.
Do I need to turn off the power to use a clamp meter?
No — measuring current requires the circuit to be live. That is the main advantage of a clamp meter. Just keep your hands behind the guard and never let the jaws touch exposed metal.
Can I measure voltage with a clamp meter?
Yes. Use the test probes (not the jaws) and select the voltage function, exactly as you would with a multimeter.
Is a clamp meter accurate enough for home use?
For checking appliance load, finding an overloaded circuit or confirming a tripping breaker, a quality digital clamp meter is more than accurate enough for home and small-business use.
